Disk Gap Band Parachutes
Disk Gap Band Parachutes
Rocketman Disk Gap Band Parachutes are compact, lightweight recovery chutes designed to deliver an excellent balance of drag, stability, and low packing volume.

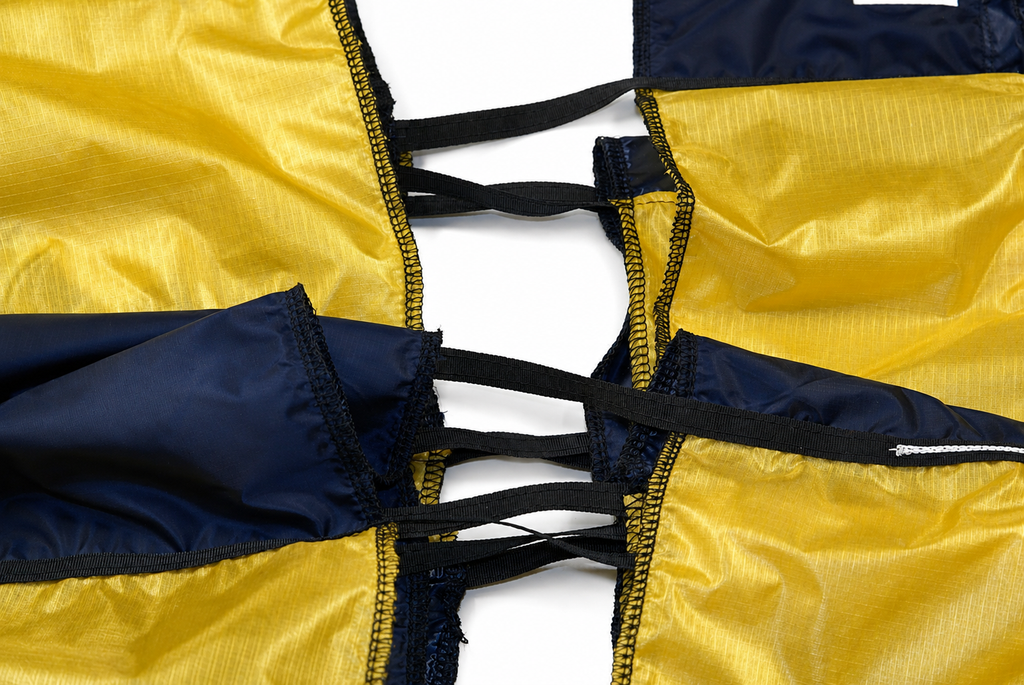

Also known as a Mars Chute, the disk gap band design was originally developed for use in the Martian atmosphere and tested under supersonic conditions. The open gap between the gores and skirt allows controlled airflow through the canopy, helping prevent asymmetric flow separation and reducing parachute oscillation during descent.
Built with a simple, efficient layout, these parachutes are ideal for applications where stable recovery and compact packing are critical.
Features
- Very compact and lightweight
Balanced design for drag and stability
Low packing volume with a simple, reliable construction
Alternating gore colors for visibility
Disk gap band design helps reduce oscillation

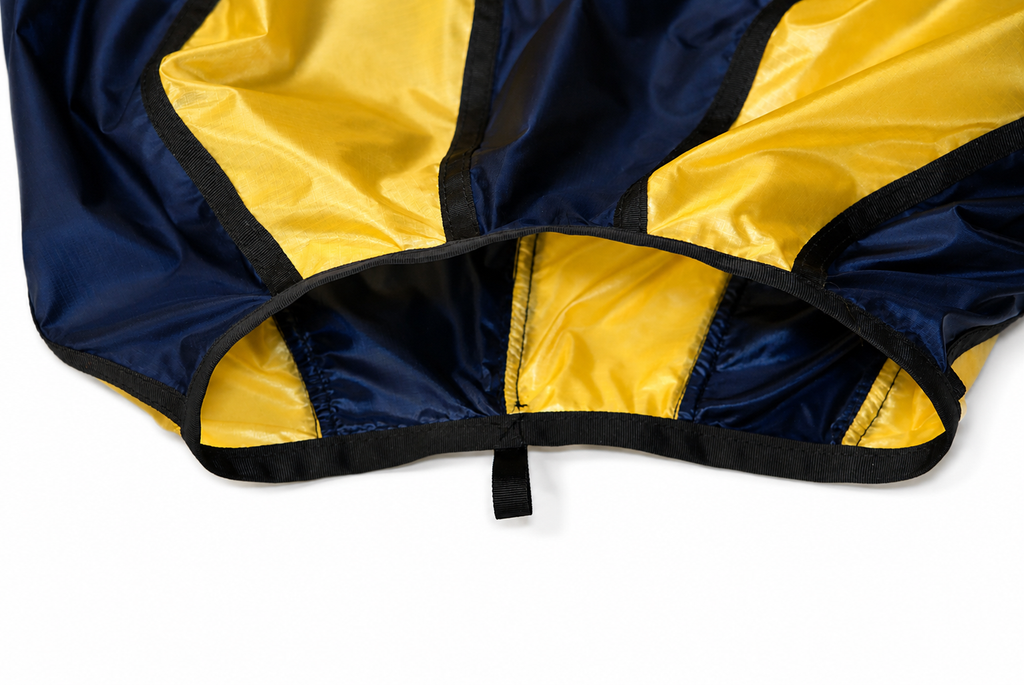

Apex vent hole improves pressure balance and inflation
Made from lightweight 1.1 oz mil-spec calendared ripstop nylon

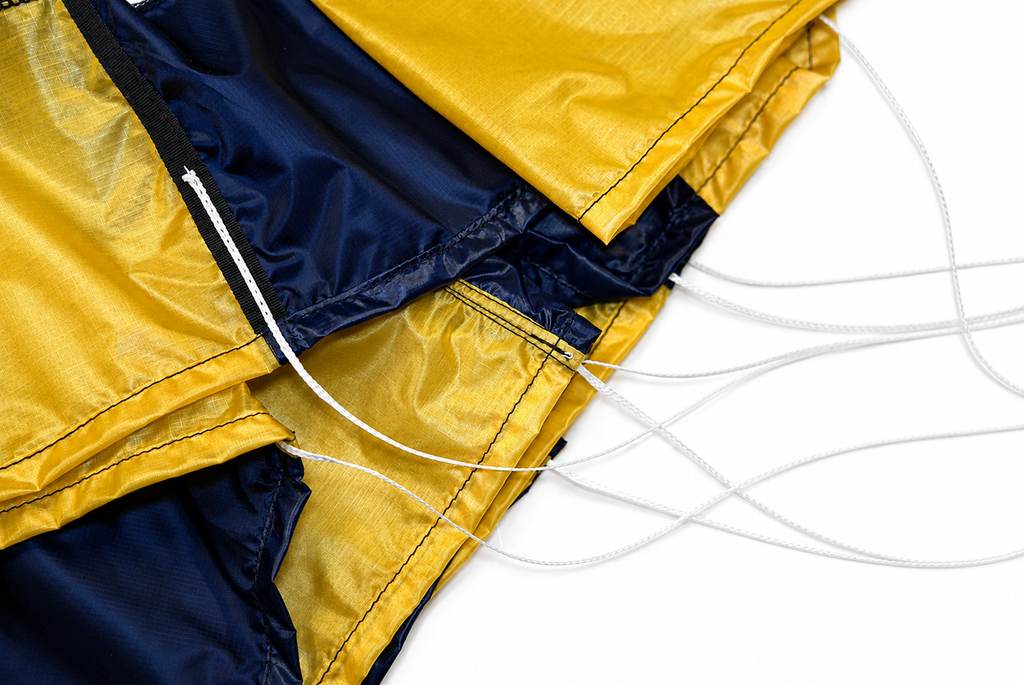

Uses 200 lb Spectra shroud lines coated with polyurethane to resist abrasion
1/32" diameter lines help reduce packing volume and weight
Made in the USA
|
2ft Disk Gap Band Parachute Weight: 1.23oz Packing Volume: 2.0”D x 2.30”L= 7.23in^3 Shroud lines: 220lb Spectra - 10 Lines - 2.5ft Long Each Material: 1.1oz Mil-Spec Ripstop - 20 Denier - Zero Porosity Number of Gores: 10 Vent Diameter: 2.5” Surface Area: 4.15ft^2 Descent Rate: 1.1lb @ 15fps 1.9lb @ 20fps 3.0lb @ 25fps |
|
|
3ft Disk Gap Band Parachute Weight: 2.22oz Packing Volume: 2.0”D x 4.15”L= 13.05in^3 Shroud lines: 220lb Spectra - 10 Lines - 3.5ft Long Each Material: 1.1oz Mil-Spec Ripstop - 20 Denier - Zero Porosity Number of Gores: 10 Vent Diameter: 3.75” Surface Area: 9.33ft^2 Descent Rate: 2.4lb @ 15fps 4.3lb @ 20fps 6.7lb @ 25fps |
|
|
4ft Disk Gap Band Parachute Weight: 3.76oz Packing Volume: 2.0”D x 7.03”L= 22.10in^3 Shroud lines: 220lb Spectra - 12 Lines - 5ft Long Each Material: 1.1oz Mil-Spec Ripstop - 20 Denier - Zero Porosity Number of Gores: 12 Vent Diameter: 5.25” Surface Area: 16.59ft^2 Descent Rate: 4.3lb @ 15fps 6.7lb @ 20fps 11.9lb @ 25fps |
|
|
5ft Disk Gap Band Parachute Weight: 5.33oz Packing Volume: 3.0”D x 4.43”L= 31.34in^3 Shroud lines: 220lb Spectra - 12 Lines - 6ft Long Each Material: 1.1oz Mil-Spec Ripstop - 20 Denier - Zero Porosity Number of Gores: 12 Vent Diameter: 6.5” Surface Area: 25.93ft^2 Descent Rate: 6.7lb @ 15fps 11.9lb @ 20fps 18.5lb @ 25fps |
|
|
6ft Disk Gap Band Parachute Weight: 7.58oz Packing Volume: 3.0”D x 6.30”L= 44.57in^3 Shroud lines: 220lb Spectra - 14 Lines - 7ft Long Each Material: 1.1oz Mil-Spec Ripstop - 20 Denier - Zero Porosity Number of Gores: 14 Vent Diameter: 7.75” Surface Area: 37.32”^2 Descent Rate: 9.6lb @ 15fps 17.0lb @ 20fps 26.7lb @ 25fps |
|
|
7ft Disk Gap Band Parachute Weight: 15.62oz Packing Volume: 4.0”D x 7.30”L= 91.84”in^3 Shroud lines: 220lb Spectra - 14 Lines - 8.5ft Long Each Material: 1.1oz Mil-Spec Ripstop - 20 Denier - Zero Porosity Number of Gores: 14 Vent Diameter: 9” Surface Area: 50.58ft^2 Descent Rate: 13.1lb @ 15fps 23.2lb @ 20fps 36.2lb @ 25fps |
|
|
8ft Disk Gap Band Parachute Weight: 18.86oz Packing Volume: 4.0”D x 8.82”L= 110.89in^3 Shroud lines: 220lb Spectra - 14 Lines - 9.5ft Long Each Material: 1.1oz Mil-Spec Ripstop - 20 Denier - Zero Porosity Number of Gores: 14 Vent Diameter: 10” Surface Area: 66.35ft^2 Descent Rate: 17.1lb @ 15fps 30.3lb @ 20fps 47.4lb @ 25fps |
|
|
9ft Disk Gap Band Parachute Weight: 22.36oz Packing Volume: 4.0”D x 10.46”L= 131.47in^3 Shroud lines: 220lb Spectra - 14 Lines - 11ft Long Each Material: 1.1oz Mil-Spec Ripstop - 20 Denier - Zero Porosity Number of Gores: 14 Vent Diameter: 11” Surface Area: 83.98^2 Descent Rate: 21.6lb @ 15fps 38.3lb @ 20fps 59.9lb @ 25fps |
|
|
10ft Disk Gap Band Parachute Weight: 28.03oz Packing Volume: 4.0”D x 13.11”L= 164.81in^3 Shroud lines: 220lb Spectra - 16 Lines - 12ft Long Each Material: 1.1oz Mil-Spec Ripstop - 20 Denier - Zero Porosity Number of Gores: 16 Vent Diameter: 12” Surface Area: 103.67ft^2 Descent Rate: 26.6lb @ 15fps 47.3lb @ 20fps 73.9lb @ 25fps |
|
|
12ft Disk Gap Band Parachute Weight: 38.99oz Packing Volume: 4.0”D x 18.24”L= 229.26in^3 Shroud lines: 220lb Spectra - 18 Lines -14.5ft Long Each Material: 1.1oz Mil-Spec Ripstop - 20 Denier - Zero Porosity Number of Gores: 18 Vent Diameter: 14” Surface Area: 149.29ft^2 Descent Rate: 38.5lb @ 15fps 61.8lb @ 20fps 106.5lb @ 25fps |
|
|
14ft Disk Gap Band Parachute |
|
|
16ft Space X Inspired Parachute |
|
|
18ft Space X Inspired Parachute |
