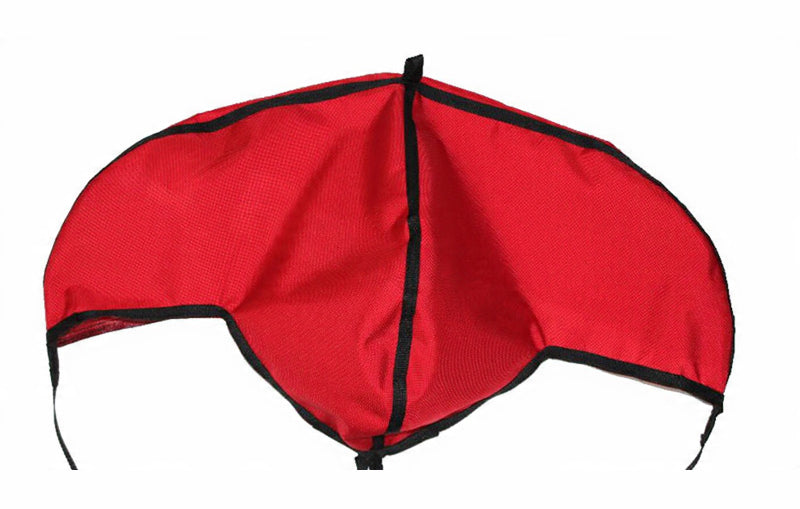

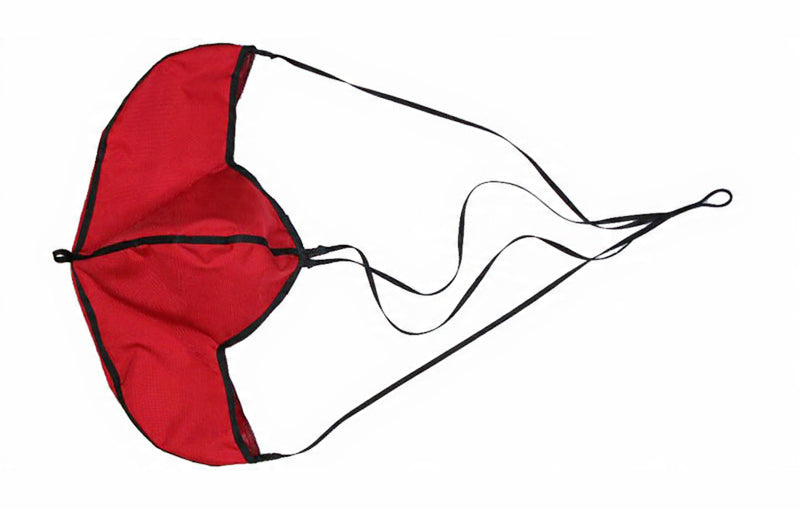

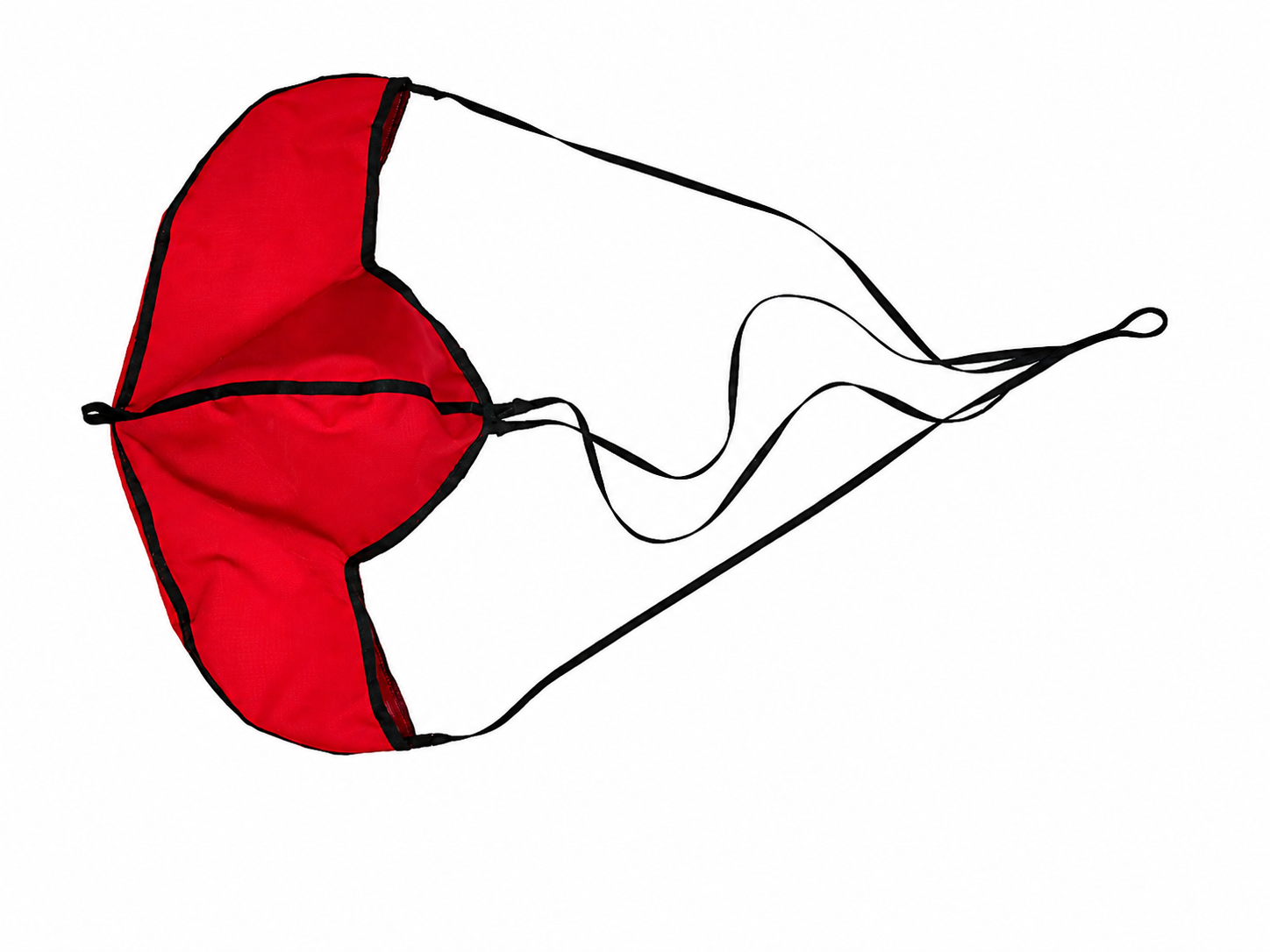

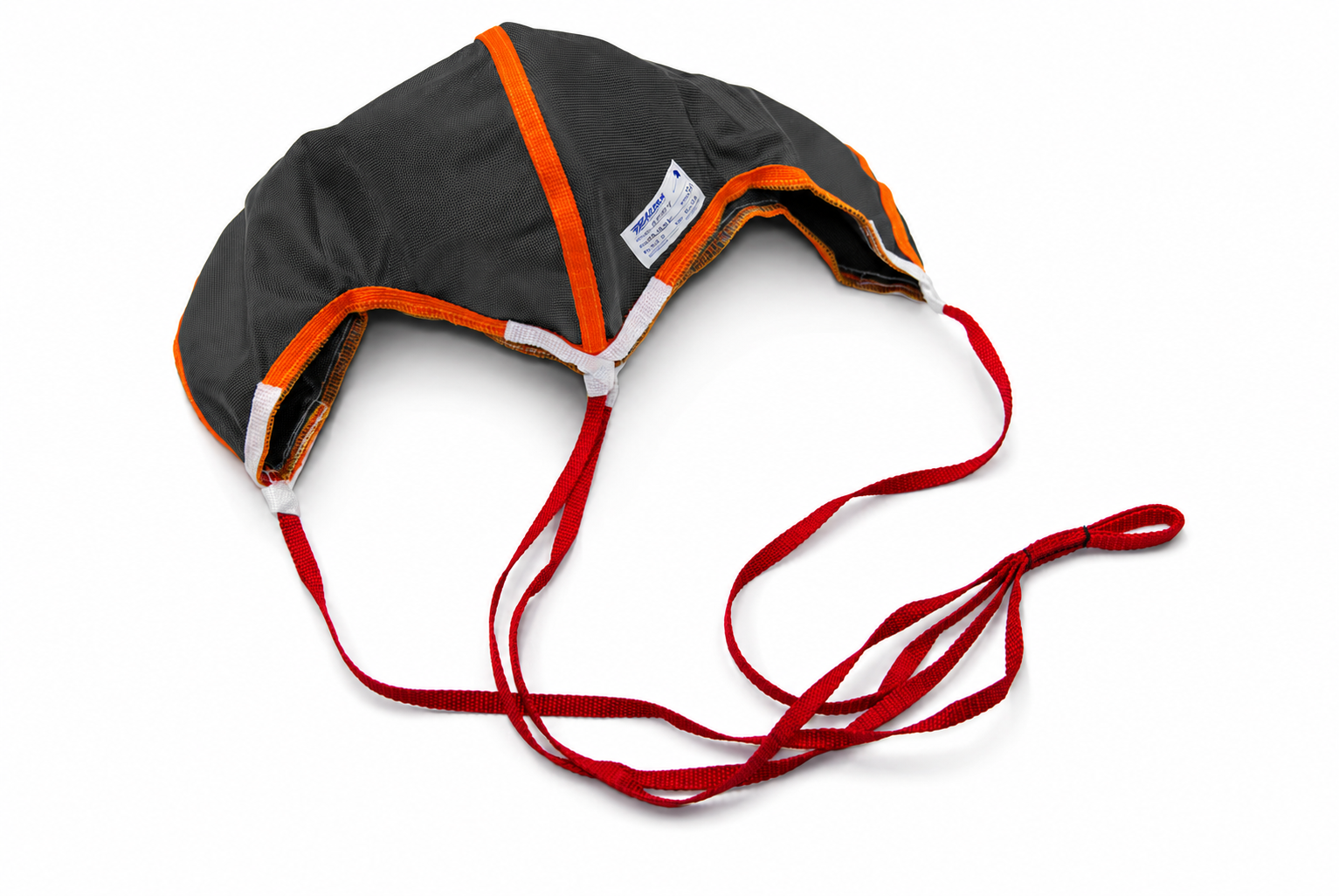

Ballistic Mach II Parachutes
-
Rocketman High-Speed Drogue Parachutes
-
Ultra-Rugged Construction: Made from bulletproof nylon, these drogue parachutes are engineered to withstand extreme forces, and have been successfully deployed at speeds up to 1,000 mph without a single stitch failure.
-

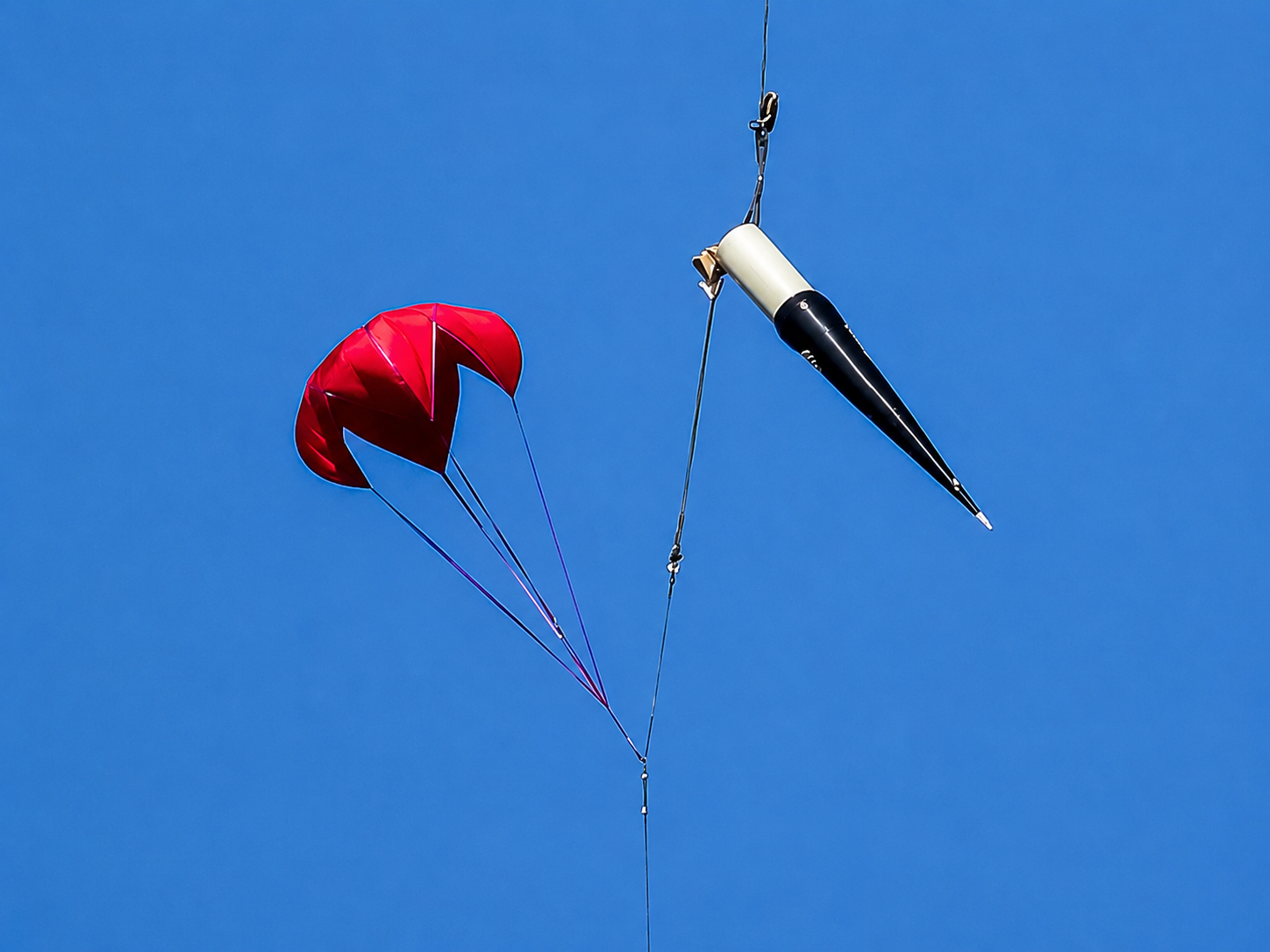

Proven Performance: In 2014, these parachutes safely recovered our space shot traveling at the speed of sound, 73 miles above Earth, demonstrating unmatched reliability for high-altitude and high-velocity missions.
-

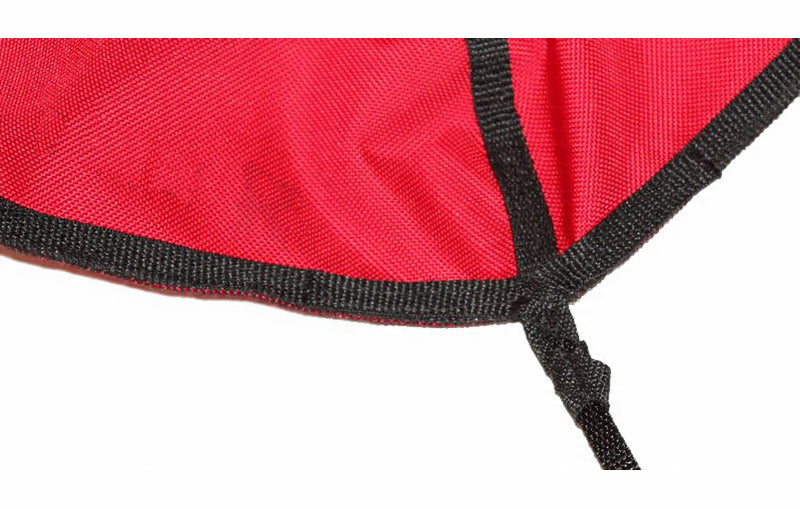

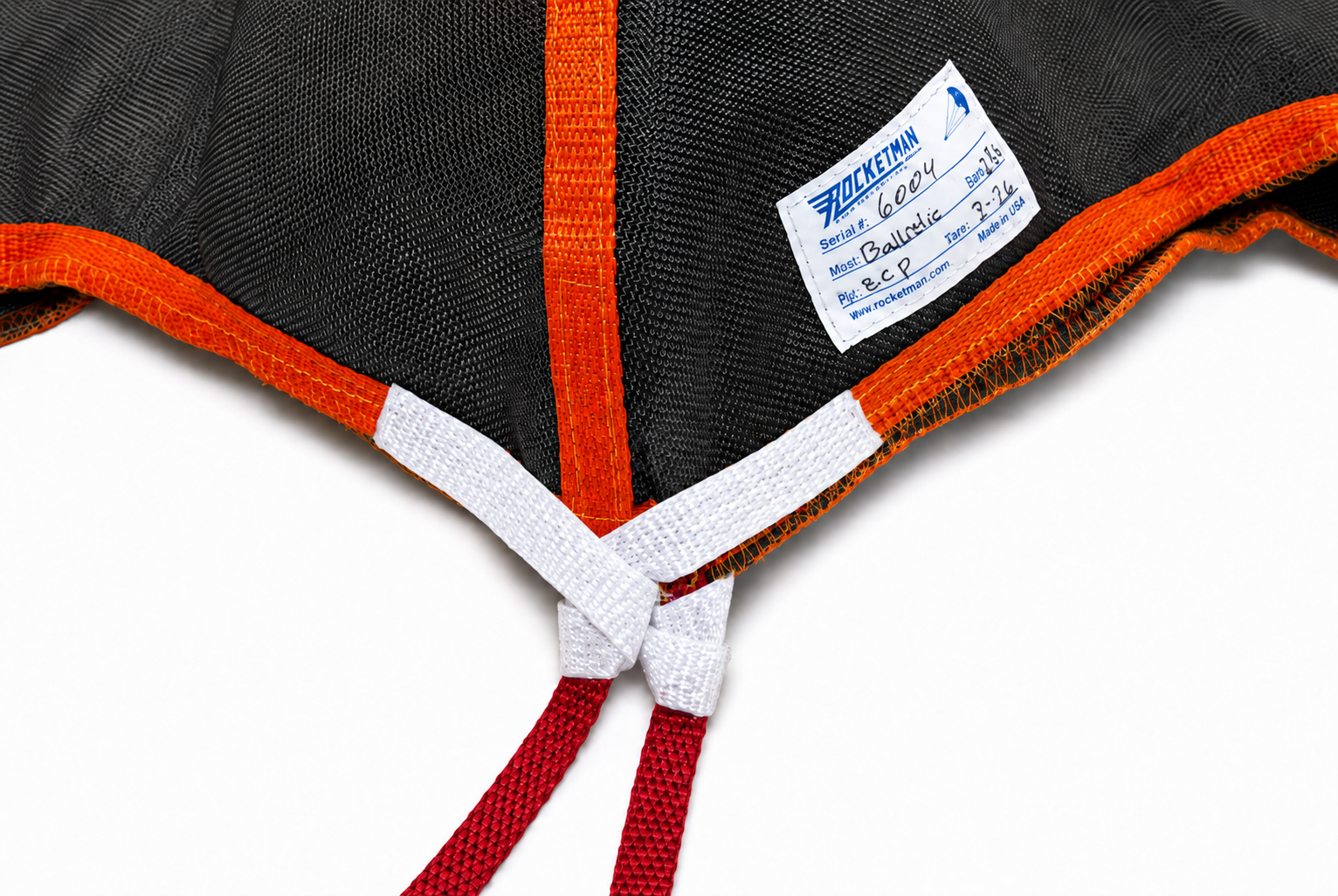

Durable Reinforcement: Tubular nylon reinforcement runs along the entire canopy perimeter to prevent tears under extreme deployment stresses.
-

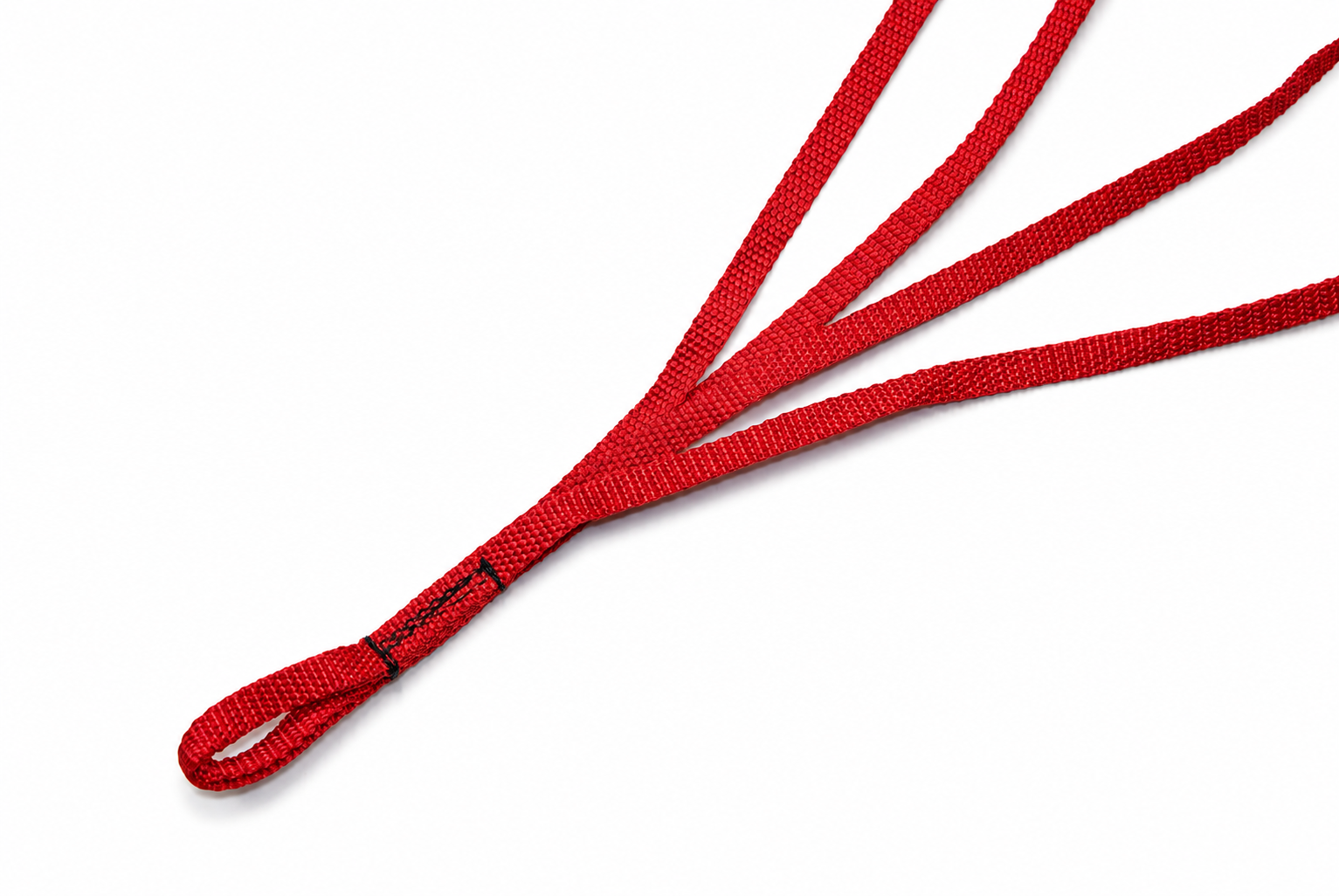

Heavy-Duty Lines: Equipped with ½″ tubular nylon shroud lines, each rated at 2,500 lbs breaking strength (10,000 lbs total), providing unmatched tensile capability for the largest rockets and heaviest payloads.
-

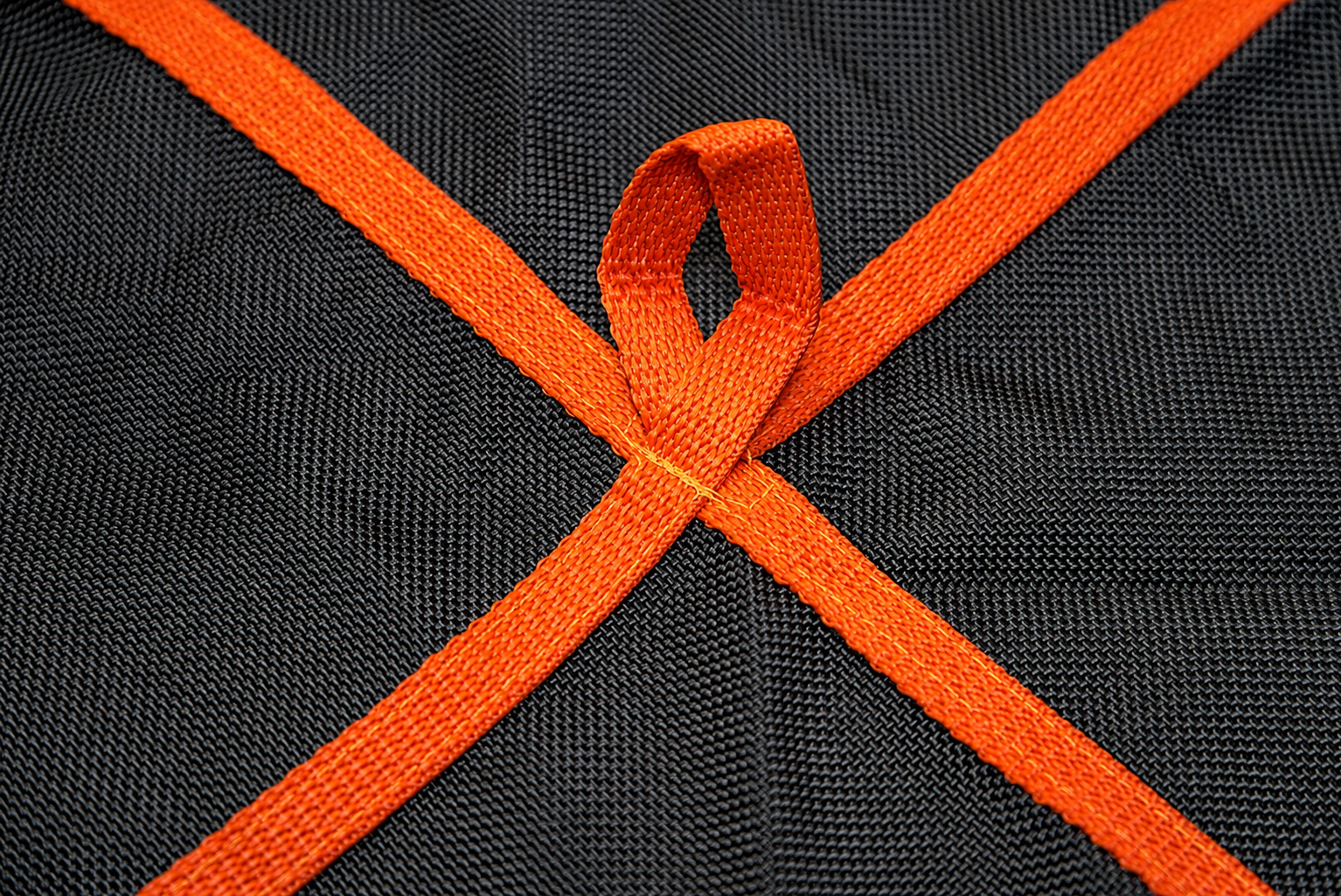

Attachment Points: Includes a top loop compatible with flame shields or deployment bags for seamless integration into complex recovery systems.
-
Drag Coefficient: Optimized with a Cd of 0.97, providing controlled descent for high-speed recovery.
-
Sizes & Flexibility: Available in 13 different sizes, accommodating a wide range of rockets and payloads. Optional line upgrades are available upon request.
-
Warranty & Value: Comes with a two-year guarantee, offering the most rugged drogue parachutes on the market at an affordable price.
Rocketman High-Speed Drogue Parachutes combine extreme durability, tested high-speed performance, and professional-grade engineering, making them ideal for space shots, high-power rockets, and any mission requiring reliable supersonic recovery.
-
|
1ft. Ballistic Mach ll Parachute Weight of parachute: 3.3oz Packing Volume: 3.0”D x 4.0L”= 28.27”^3 Descent rate: 15ft/sec: .10lbs 17ft/sec: .20lbs 20ft/sec: .40lbs 25ft/sec: .50lbs |
|
|
2ft. Ballistic Mach ll Parachute Weight of parachute: 6oz Packing Volume: 4.0”Dx5.0L”=62.83”^3 Descent Rate: 15ft/sec: .70lbs 17ft/sec: .90lbs 20ft/sec: 1.13lbs 25ft/sec: 1.5lbs |
|
|
3ft. Ballistic Mach ll Parachute Weight of parachute: 11.3oz Packing Volume: 4.0”Dx7.0L”=87.96”^3 Descent Rate: 15ft/sec: 1.7lbs 17ft/sec: 2.1lbs 20ft/sec: 2.8lbs 25ft/sec: 4.4lbs |
|
|
4ft. Ballistic Mach ll Parachute Weight of parachute: 18oz Packing Volume: 4.0”D x 8.5L”= 106.81”^3 Descent Rate: 15ft/sec: 3.0 17ft/sec: 3.7lbs 20ft/sec: 5.0lbs 25ft/sec:7.6lbs |
|
|
5ft. Ballistic Mach ll Parachute Weight of parachute: 23.6 Packing Volume: 4.0”D x13.0L”= 163.36”^3 Descent Rate: 15ft/sec: 4.7lbs 17ft/sec: 5.7lbs 20ft/sec: 8.0lbs 25ft/sec: 12lbs |
|
|
6ft. Ballistic Mach ll Parachute Weight of parachute: 31.6oz Packing Volume: 4.0”D x17.0L”= 213.63”^3 Descent Rate: 15ft/sec: 6.5lbs 17ft/sec: 8.0lbs 20ft/sec: 11.5lbs 25ft/sec: 17.0lbs |
|
|
7ft. Ballistic Mach ll Parachute Weight of parachute: 40oz Packing Volume: 6.0”D x13.0L”= 367.57”^3 Descent Rate: 15ft/sec: 9.0lbs 17ft/sec: 11lbs 20ft/sec: 15lbs 25ft/sec: 23lbs |
|
|
8ft. Ballistic Mach ll Parachute Weight of parachute: N/A Packing Volume: N/A Descent Rate: 15ft/sec: 12.0lbs 17ft/sec: 15.0lbs 20ft/sec: 20lbs 25ft/sec: 30lbs |
|
|
9ft. Ballistic Mach ll Parachute Weight of parachute: N/A Packing Volume: N/A Descent Rate: 15ft/sec: 15.0bs 17ft/sec: 18.0lbs 20ft/sec: 26lbs 25ft/sec: 39lbs |
|
|
10ft. Ballistic Mach ll Parachute Weight of parachute: N/A Packing Volume: N/A Descent Rate: 15ft/sec: 18.0lbs 17ft/sec: 23lbs 20ft/sec: 32.0lbs 25ft/sec: 48.0lbs |
|
|
12ft. Ballistic Mach ll Parachute Weight of parachute: 160oz Packing Volume: 8.0”D x17.71L”= 890.64”^3 Descent Rate: 15ft/sec: 24.0lbs 17ft/sec: 33.0lbs 20ft/sec: 43.0lbs 25ft/sec: 67.0lbs |
|
|
14ft. Ballistic Mach ll Parachute Weight of parachute: N/A Packing Volume: N/A Descent Rate: 15ft/sec: 35.0lbs 17ft/sec: 44.0lbs 20ft/sec: 60.0lbs 25ft/sec: 92.0lbs |
|
|
16ft. Ballistic Mach ll Parachute Weight of parachute: N/A Packing Volume: N/A Descent Rate: 15ft/sec: 45.0lbs 17ft/sec: 60.0lbs 20ft/sec: 80.0lbs 25ft/sec: 120lbs |
